HD Antifreeze Coolant Suitable for All Makes and Models That Require Nitrited Formulation
Service Life 1,200,000 kms or 15,000 hours*
Suitable for all engines that required a Nitrited formulation
Provides excellent protection for aluminium and all other engine metals
Protects against liner pitting and corrosion
Specifically formulated for pre 2014 engines
Suitable for cast iron blocks with copper brass cooling systems
Approved by Cummins to meet CES14439
Suitable for all Cat Engines
This Nitrited Formulation is suitable for all makes and models of truck and commercial equipment and machinery that has cast iron engines with copper and brass cooling systems requiring nitrited coolant. The Nitrite formulation gives maximum wet liner protection in older engines without aluminium components and provides up to 750,000 Miles (1.2 million kms ) 15,000 hour * Service Life with extender. It is suitable for Fleet applications upwards of 9000kg (Class 6 – 8)
NOAT is OE Factory Fill For all Caterpillar engines
Suitable for all Caterpillar Engines meeting CAT-EC1 Performance requirements

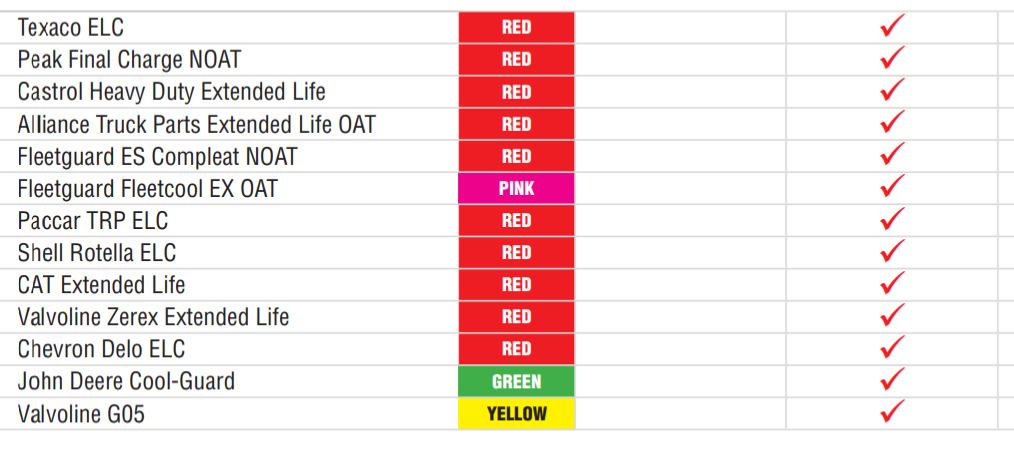

HD Compatibility Chart
Nitrited Organic Acid Technology (NOAT)
Prestone Command® HD Concentrate and 50/50 Antifreeze/Coolant are Nitrite Organic Acid Technology (NOAT) for use and compatible with ANY NOAT Extended Life Heavy Duty antifreeze/coolant in ANY diesel-powered commercial vehicle engine or stationary engine. Its advanced, patented formulation is a concentrated blend of premium long-lasting inhibitors designed to provide up to 1,200,000 kms/15,000 hours* of protection against temperature extremes, rust, corrosion, scale and premature water pump failure.
* Add NOAT coolant extender at 480,000 kms and 960,000 kms and as necessary to maintain inhibitor level and pH. Use new coolant if replacing a cooling system part.
Product Specification
CONCENTRATE TECHNICAL DATA
Composition by Weight Typical Values
Antifreeze/Coolant Concentrate: 96.7%
Total Water: 3.3%
Dyes: Trace
Properties Typical Values
Color: RED
Odor: Characteristic
Ash Content: 1.9% by weight
pH at 50 vol%:: 8.2-8.8
Reserve Alkalinity: 5.5 ml
Density at 15°C, g/mL: 1.1185
Freezing Point 50 vol%: -34°F (-37°C)
Boiling Point at 50 vol%: +226°F (+108°C)
Foam Test: 55 mL/1.4 sec.
Meets or Exceeds following OE Performance Requirements
OE Approval / Registration
- Cummins CES 14439
- Detroit Diesel 93K217
Exceeds OE Performance Requirements
- CAT EC-1
- Navistar CEMS B-1, Type III
- International
- Volvo
- Mack
- Freightliner
- John Deere JDS-G135
- Paccar
- Kenworth
- Peterbilt
- New Holland
- Waukesha
- John Deere H24
- John Deere H24 C1
Meets or Exceeds following Industry Standards
- ASTM D6210
- ASTM D3306
- ASTM D4985
- ASTM D4340
- SAE J1941
- TMC RP329A
- TMC RP338A
- TMC RP364
- TMC RP351
- SAE J1034
